Core technology

: Innovative energy storage charging and discharging application solutions

Provide mobile energy storage, home energy storage, commercial energy storage and other full-scene charging and discharging solutions, with the following features.

Integrated software and hardware, intelligent control and operation and maintenance management solutions
Vehicle gauge level solutions meet long-term reliability and stable operation requirements
The industry's first compatible with international standards of energy storage hardware and software solutions

: Charging test simulation equipment and system technical scheme

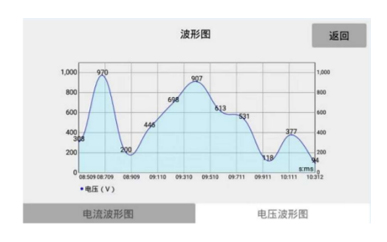

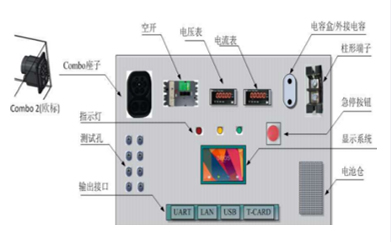

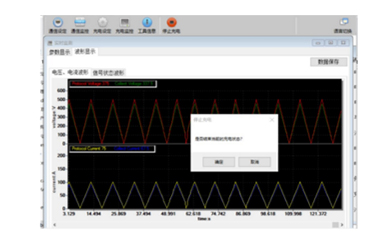

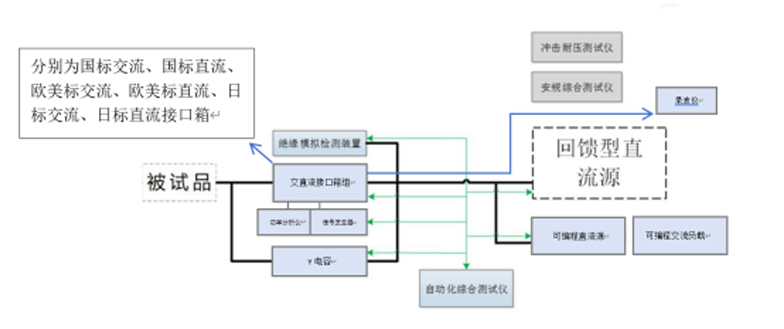

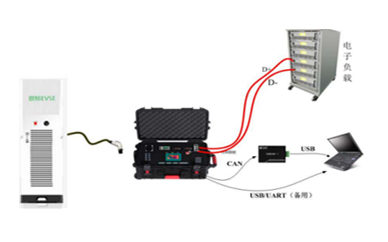

By simulating the charging function of charging piles or electric vehicles in various scenarios, the charging test simulation equipment and system can detect the communication between charging piles or electric vehicles and the change process of current and voltage and other parameters, which can well assist the whole vehicle factory or charging pile enterprises to carry out development, debugging and on-site problem solving, and can be adapted to national standards and overseas multinational standards.

: Global multi-standard new energy charging and discharging protocol high-performance software and hardware system solutions

Independent intellectual property rights Vehicle charging controller EVCC and pile end charging controller SECC

Fully customized core autonomous controllable hardware solutions based on general and domestic chips
Compatible with all international standard protocols, through hundreds of thousands of product shipment verification
It relies on the deep understanding of PLC technology and application experience, combined with the optimization of the underlying control algorithm to achieve low power design
High integration design to achieve the optimal BOM solution, providing low-cost and reliable overall machine solution

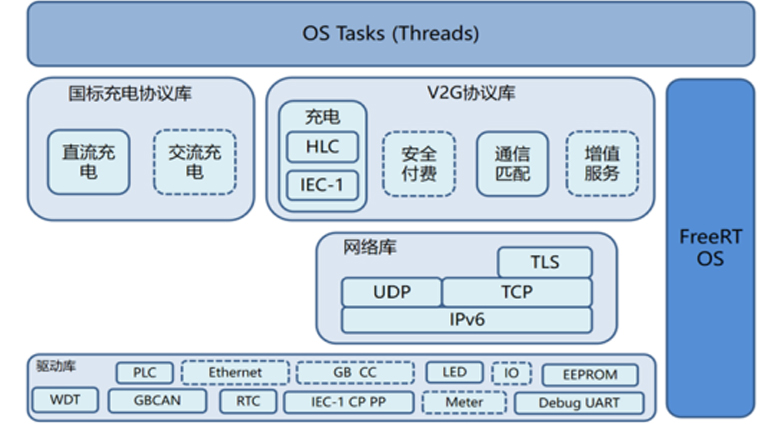

Self-developed full-stack software solution, compatible with international standards
Complies with ISO26262 functional safety and ISO21434 information security certification standards, and completes application import from mainstream host vendors
Software framework based on vehicle gauge level AutoSAR architecture to ensure software quality
The actual adaptation and optimization of multiple host manufacturers have reached the product technical standards of similar international mainstream manufacturers (Vector, etc.)

: V2G charging pile overall solution

Provide a total charging pile solution that meets all conditions and requirements of V2G (vehicle network interaction through charge and discharge), including a complete set of controllers required for a complete charging pile. Only need to provide the solution to the factory, you can produce V2G charging pile that can adapt to national and overseas standards.

01

CCU

Dc control unit is the controller developed by our company for DC charging pile, the working voltage is 12V.

The motherboard completes the interaction with the BMS, sends the charging demand to the charger, controls the charging state of the charger, collects the operating data of the charger, and stops automatically under abnormal state;
Dc charger control unit with charging gun electric lock control and temperature detection, each charging gun detection and control work independently.
02

SECC

After installing the charging pile conforming to GB/T27930, the international DC charging pile can be transformed into charging pile equipment conforming to DIN70121&ISO15118; Or the charging pile control board is not converted through the national standard agreement, and is directly implemented as follows:

Chademo protocol
CCS1（SAE J1172)
CCS2（DIN70121&ISO15118）
03

WEBBOX

In order to realize the function of the cloud platform remote control of the charging pile: control the start and stop of the charging pile through the mobile phone, remote access to the daily charging times of the charging pile, charging model, charging success, charging capacity and other information. Our company specially designed the WEBBOX controller to help realize the docking of charging pile and cloud platform, which is used to receive the command issued by the cloud platform and report the data to the cloud platform in time. Its basic functions are:

l WEBBOX connects to the cloud server through 4G module, Ethernet and WIFI;
l WEBBOX interacts with the CCU and screen at the end of the charging pile;

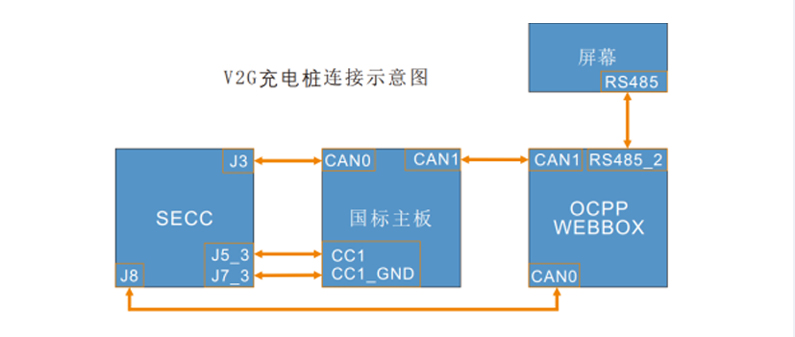

The interaction between the WEBBOX and the CCU (the charging pile is charged through the CCU control) is as follows: The WEBBOX sends charging instructions to the CCU, and the CCU returns charging quantity and charging status information to the WEBBOX.
In general, WEBBOX is the external window of the internal controller of the charging pile, and all interactions between the charging pile and the OCPP cloud platform need to be carried out through WEBBOX.

: Charging pile protocol conversion technology

Transform the international DC charging pile into the charging pile equipment conforming to DIN70121& ISO15118; Or the charging pile control board does not convert through the national standard agreement, and directly realizes the following agreement:

Chademo protocol
CCS1 (SAE J1172)
CCS2 (DIN70121&ISO15118 Supply Electronic Charging Controller)

Charging standard

Standard name		Prescribed content
GB/T 18487		National recommended standards, general requirements for charging systems and CP communication specifications
GB/T 27930		The national recommended standard specifies the communication specifications of DC charging
IEC 61851		IEC standards, which specify general requirements for charging systems and CP communication specifications
DIN 70121		German standard, which specifies the communication specifications for charging
ISO 15118		The national standard stipulates the communication specifications of the charging, and adds PnC, V2G and other functions
CHAdeMO-1.2ed2_en		Japanese standard, which specifies the communication specifications for charging

Functional characteristic list

CP wire interface	Modulation mode	ROBUST OFDM
	Transmission bandwidth	2~30MHz
	Cut layers/Transfer data efficiently	4Mbps -10Mbps
CAN interface	Standard	ISO 11898
	Communication rate	500kbps
Performance parameter	Operating temperature	The value ranges from -40℃ to 85℃
	Working humidity	5%~ 95%
	dimension	120X100mm
	Power supply	12/24(rated) 6V(Min)-26V(Max)±100mv
Interface type	External interface	UART,GPIO,JLINK
